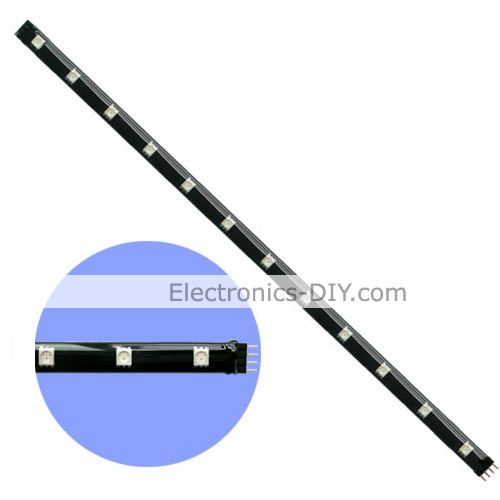

RGB LED Strip
These flexible waterproof RGB LED strips contain 12 Ultra Bright 5050 RGB LEDs. RGB LEDs can produce Ultra Bright White, Red, Green, Blue, Violet, Cyan & Yellow light. LED strips have durable and waterproof design and can be used for cars, trucks, motorcycles, garden decoration, cabinets, Audio / Video systems, home theaters, computer, etc. They include double-sided self-adhesive tape that can be used to attach to cabinets and other surfaces. RGB LED strip includes 4-PIN female connector at each end and one 4-PIN male connector to connect multiple RGB LED strips together (no soldering is required). Simply connect 12V DC power supply and you are ready to go.
Specifications
 Flexible & Waterproof
LEDs: 12 Ultra Bright 5050 RGB LEDs
LED Colors: White, Red, Green, Blue, Violet, Pink & Yellow
Power Supply: 12V DC
Current Draw: 50-180mA
Connection: Common Cathode
Dimensions: 30cm x 1cm x 2mm
PIN Diagram
1) Green (+12V)
2) Red (+12V)
3) Blue (+12V)
4) GND
|
|
