LM3886 Gainclone 2x68 Watt Full Amplifier

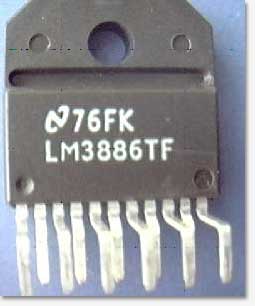

In this application, we are building a gaincard like amplifier. This application type is named gainclone in audio world. To take a satisfactory audio response, we are adding a Linkwitz equaliser to the feedback line and adding bass compensation also. We are using LM3886 which is the revised version of its brother LM3875. These are the parameters that we are intereted in. Honestly this values are much more better than many of HI-FI amplifiers sold in the market. Especially it is hard to find 110dB signal to noise ratio. And another property is, when there is no input, this amplifier is quite like a dead. It is nearly impossible to hear any noise when you stick your ear to the speakers.
| |
 |
