Chu Moy Headphone Amp

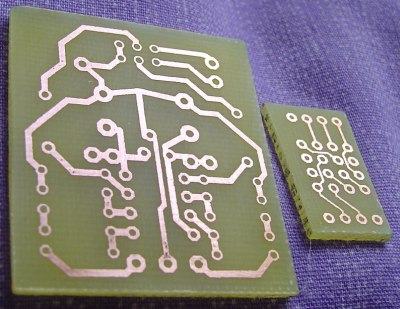

This is a Chu Moy headphone amp I made. I got the PCB design from Guzzler from Head-Fi and the original design is very popular and is here. I changed Guzzler's layout so I could use a Taiwan Alpha pot on the PCB. These pots a high quality (some say better than ALPS blue velvet) and are available from Jaycar. You can see the thread here. I also made a DIY Brown dog adapter so I could use two OPA627 single opamps in a dual opamp socket.
