3 Digits Digital Volt Meter with PIC16F676

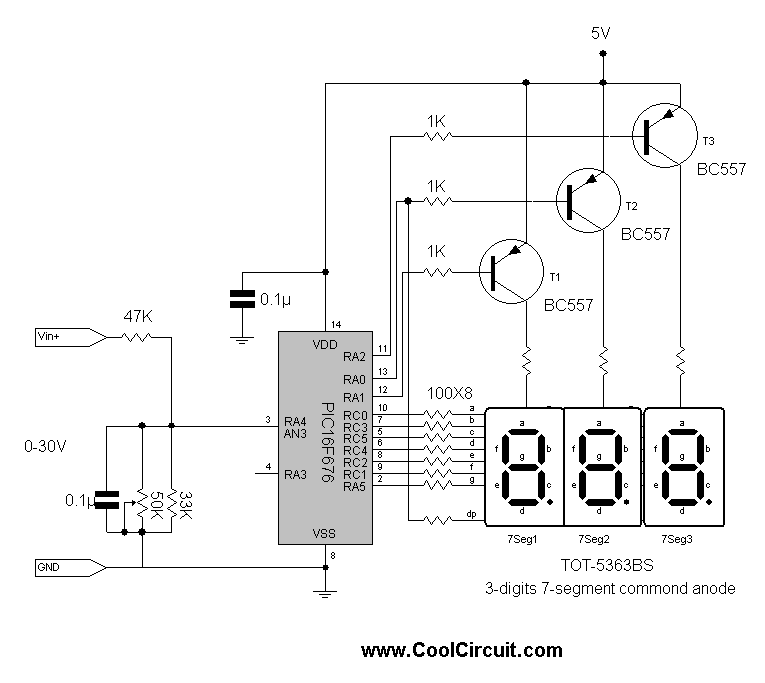

This is simple 3-digits digital volt meter.PIC16F676 used to read analog signal(voltage) and display the value on 3-digits 7-segment. You can apply similar principles to measure DC current with parallel R shunt.

As we know the most of PIC microcontroller has 8-bit/10-bit on-chip Analog to Digital converter module. In this project I use PIC16F676 which have ADC 10-bits 8 channel but this project use only one channel for measure voltage input for other pin set as digital I/O.

Downloads

Project documentation

HEX Program
3 Digits Digital Volt Meter with PIC16F676 - Link
