Ni-Cd Charger

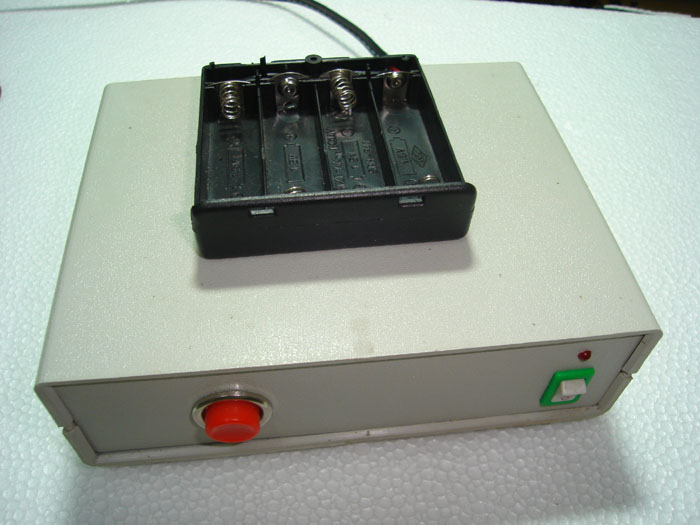

This is a NiCd/Ni-MH charger that can charge with constant current and automatic charge termination when the total voltage for all cells reach the setting voltage.

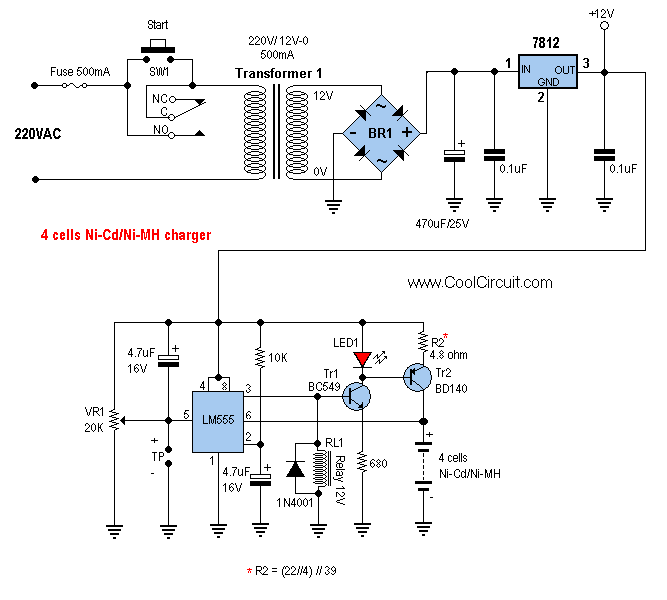

I design this project to charge for 4 cells Ni-Cd/Ni-MH only .After assembly all components into PCB then adjust VR1 to get the voltage at pin 5 of LM555 is 5.8-5.9V or about 1.45 V/cell (1.45 x 4 = 5.8V) This circuit charging the battery at about 270 mAh or 10% of C (my battery is sanyo Ni-MH 2700mAh) .You can change the charge current by replace R2.

Downloads

Project documentation

Ni-Cd Charger - Link
