DIY 4 x 22W Car Audio Amplifier Based on TDA7384

DIY 4 x 22W Car Audio Amplifier Based on TDA7384




DIY 4 x 22W Car Audio Amplifier Based on TDA7384




So this time I decided to make pretty simple but powerful enough car audio amplifier. For this Iíve chosen quad bridge car audio amplifier TDA7384 which has four input and four output channels with power capability of 4x35W. As datasheets of TDA7384 says it is low distortion, low output noise, low external component count. Also has Stand-By function and Mute function. It has several protections like from output short circuit to GND or to Vs, capable to handle very inductive loads, thermal limiter, load dump voltage. TDA7384 is an AB power amplifier cased in flexiwatt25 (eagle library is included in project archive) package witch is designed for high end car radio applications. It allows rail to rail output voltage swing with no need of boot-strap capacitors.


DIY 4 x 22W Car Audio Amplifier Based on TDA7384

If connect to car battery where operating voltage is about 13.2V, then each channel can give 22W(4ő©) ‚Äď what is more than enough for me. This amplifier I probably will use to test audio processor TDA7313 which is still in development phase. I didnít find much information about this chip on the internet so I decided to built it and try on my own.

I have followed the schematic in datasheet when building circuit. In datasheet you may also find PCB layout but it is two layered and didnít fit to may box Iíve chosen. So I have made single sided PCB 50X100mm.

As I put pins on PCB for ST-BY and Mute but I not using them, I connected these pins to VCC like it is shown in PCB view. According to datasheet St-By and Mute turns off amplifier if signal in input is lower than 3.5V. So it is recommended to connect these pins to Vcc if not used.

Maximum power dissipation of chip is 80W(Tcase=70¬ļC), so it can handle 4 channels working at power of 20W each. But of course chip in a box doesnít have good ventilation so Iíve put a radiator to ensure that amplifier effectively dissipates heats. I didnít try to load amplifier to maximum to see if it doesnít heat up to much. But at normal sound level it stays warm what is normal.

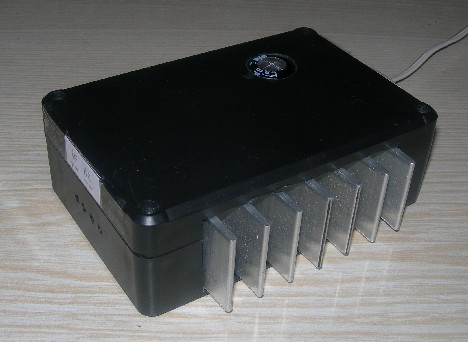

Don't forget to put thermal paste between chip and radiator to ensure lower thermal resistance. And here we go ‚Äď brand new power amplifier ready to go.
