LED Flasher

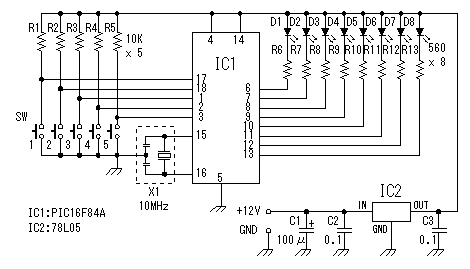

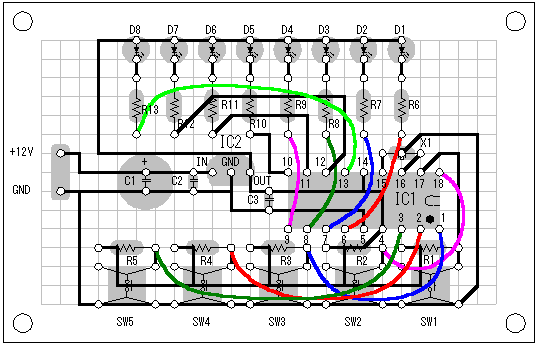

I made LED flash circuit which is often used as the PIC software making practice. This circuit controls the blink of eight LEDs with the software of PIC. The blinking pattern can be changed with five switches.

Downloads

Project documentation

HEX Program
LED Flasher - Link
