20W T-AMP

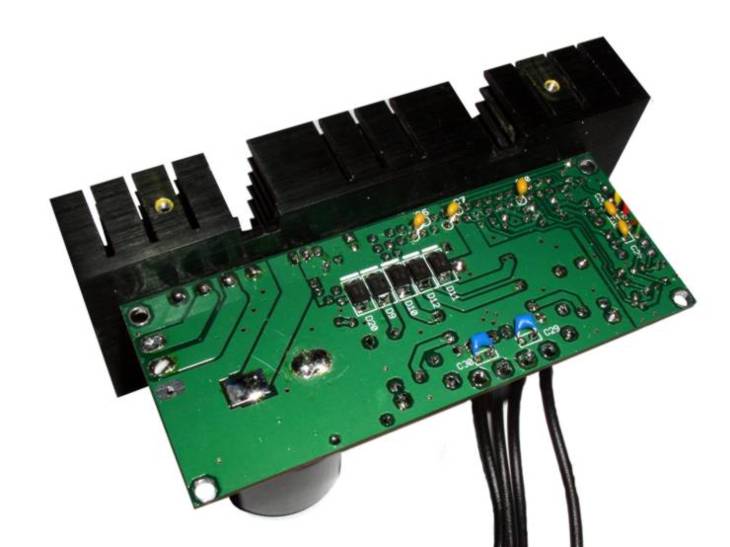

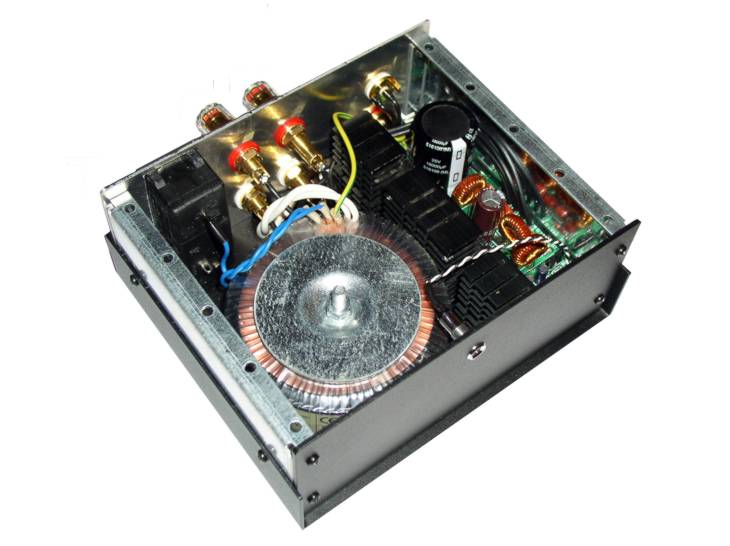

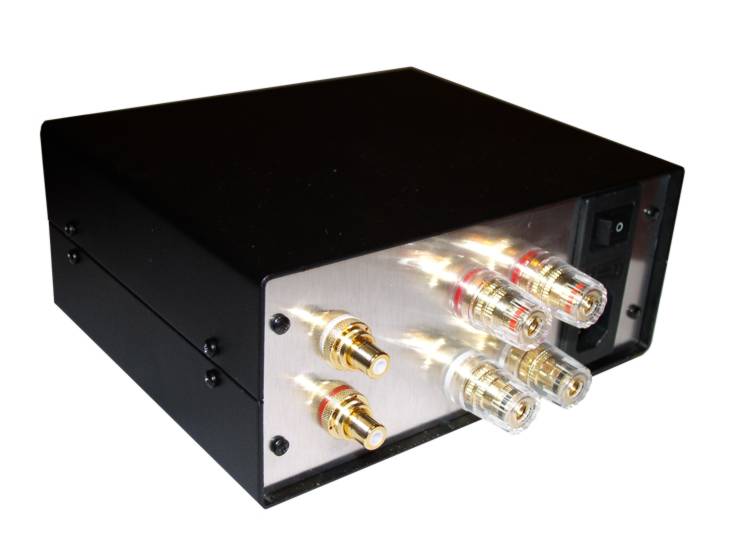

This amplifier is a standard datasheet aplication of Tripath TA-2020-020 T-class IC. It offers 20W on 4ohm load with efficienty of up to 88%. The whole amplifier was bought as a AMP6 kit from 41hz.com. The PCB board looks really good and the copper on both sides is quite thick. The kit contains only high quality components such as 1% metal film resistors or Panasonic FC input capacitors. Because of such high efficienty the chip doesn't really require a heatsink. I used such a big one only because I had it. Before starting soldering please read the Assemble Manual so that even beginers will cope with building this amplifier. For more information you can visit the AMP 6 forum.
