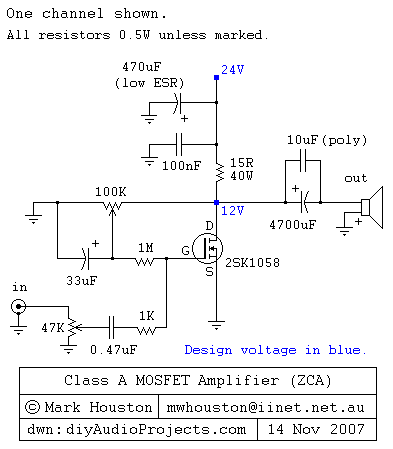

Class-A MOSFET Amplifier

Class-A MOSFET Amplifier

I am using this Class A Amplifier with a 12AU7 based valve preamp. It produces the most purest sound. I have no idea of distortion levels etc. but it has a very fine grain and delicately textured quality. With only one watt of output efficient speakers must be used. Bass is better than the design predicts and the amp drives my 12" 63L based 3-way speakers with ease.

Downloads

Class-A MOSFET Amplifier - Link
