LM3875 Gainclone Power Amplifier

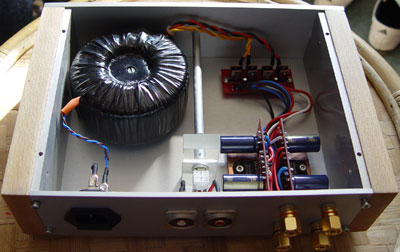

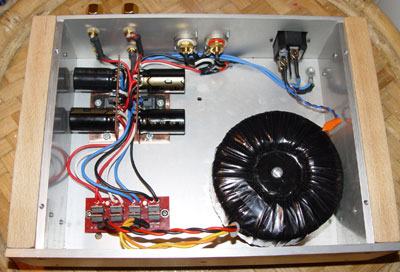

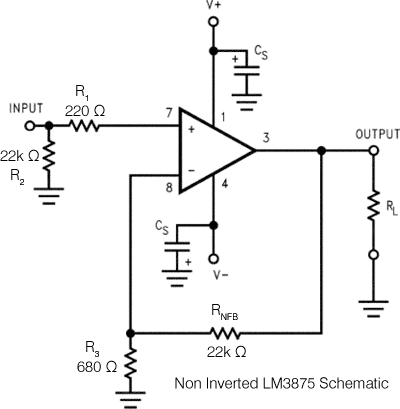

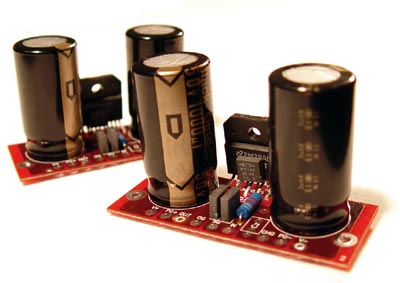

This is a basic design with a single LM3875TF chip per side, and one shared toroidal transformer. I will be making two of these amplifiers simultaneously but with a few critical component differences. One is based on standard components, and one on premium components.
There was a lot of deliberation on the type of transformer to get, particularly the secondary voltages. The concern here is the target load as, generally speaking, the higher the voltage, the less suited it is to drive low impedance loads (4ohms). I settled on 20 volt secondaries which I think is a good compromise, feeling that 18v is perhaps a little too low and 22v a little too high to get the max with a 4 ohm load whilst minimising output loss if using 8 ohms. The ability to run stable at 4 ohms is paramount to me to keep it open to different applications, and output wattage is relatively unimportant for this design.
| |
 |
