PIC Phone Line Controller v2

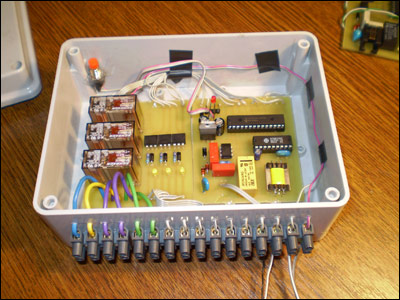

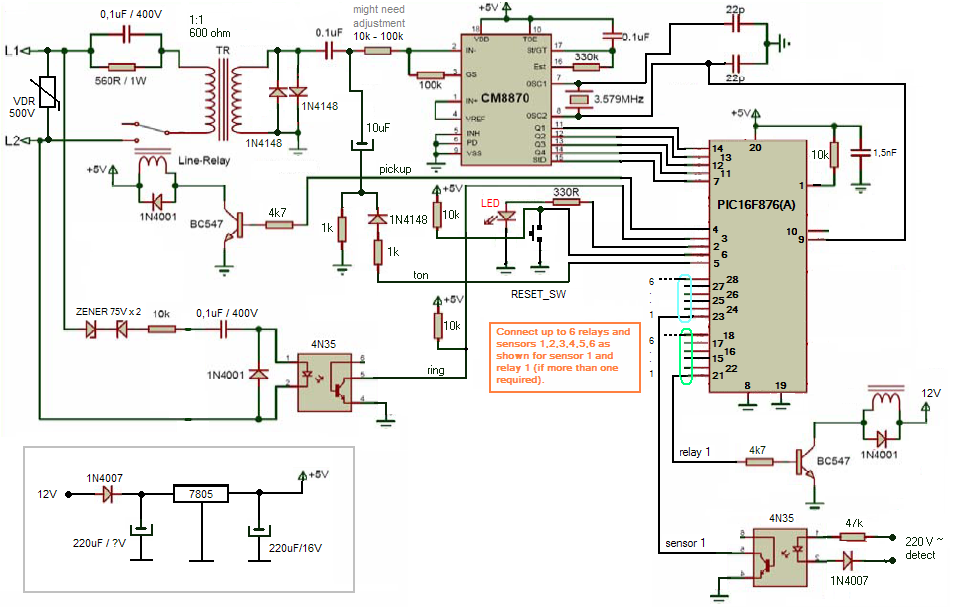

This is a newer version of previous device with a single relay. This one can have up to 6 relays and 6 sensor-state inputs.
The task was to build a device that connects to the phone line and has a relay as an output switch. It should also sense if the connected «consumer» is turned-on or off and report to the administrator at the other end of the phone line. The administrator would then call-in the device, log in with the password, and check the state of «consumer», turn it on or off, change password or some other settings.
| |
 |
