Temperature / Light Brightness Meter with LCD

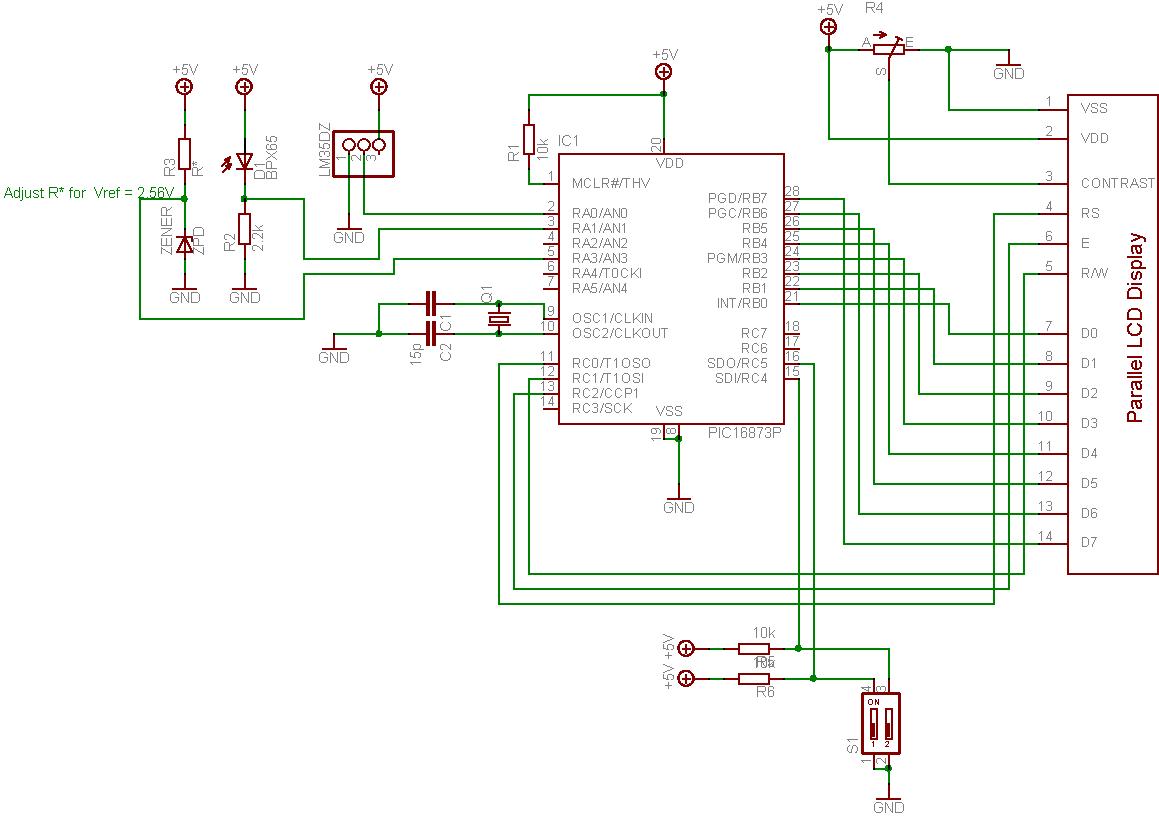

Circuit measures the temperature and ambient brightness of the surrounding environment at the location it is placed. The data from the ADC is the calculated and displayed on the LCD. The main CPU unit on board the device is the PIC16F873.

Downloads

HEX Program
Temperature / Light Brightness Meter with LCD - Link
