If you need to add simple data acquisition capabilities to your PC, then look no further than the Analog Interface Unit. The Analog Interface Unit (AIU) is a simple circuit that connects to a PC parallel port, and allows you to sample and output 8-bit analog signals under software control. Here are some of the features : * 8-bit ADC and DAC * Powered from the parallel port * 1Mohm input impedance. * Software selectable +/-1.25V or +/-2.5V input and output ranges.

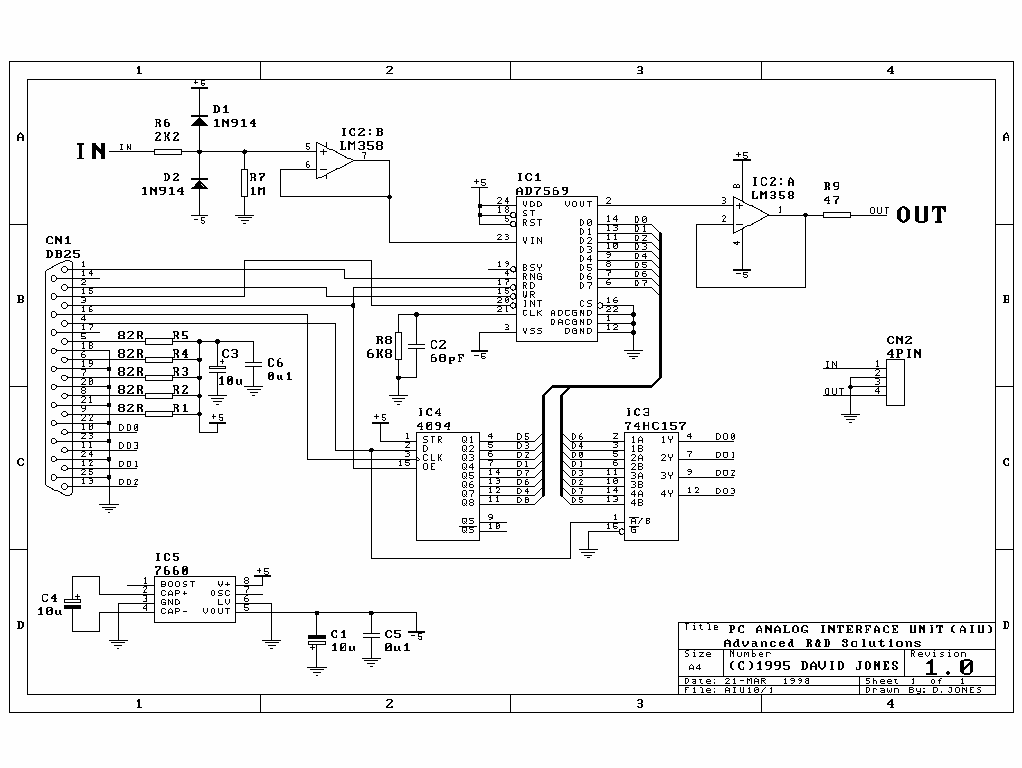

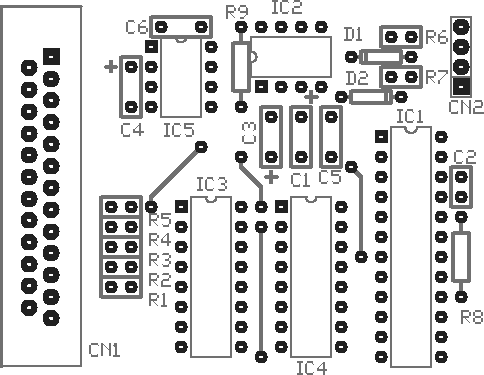

This ZIP file includes the following : * Schematic and PCB files in Protel (DOS) format * Source code driver routines in C, BASIC, and PASCAL * Some simple test programs. * Documentation

Downloads

---

Project documentation

 Simple PC Data Acquisition Circuit - Link
