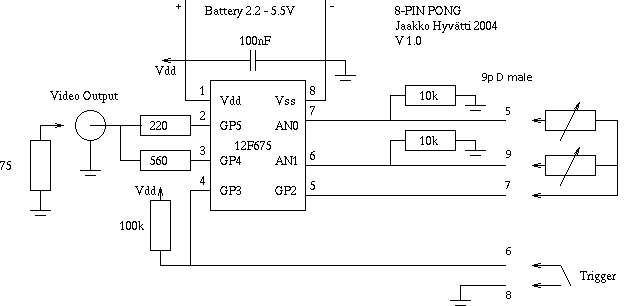

This project is based on ideas from Rickard's electronic projects page and David B. Thomas VCR Pong. However, I have developed the simplicity even further, eliminating most of the external components. Using microcontrollers with internal 4MHz clock generator there is no need for the xtal. The 12f675 part also operates on wide voltage range, and the regulator can be removed. For game controller, I plan on using the old Commodore 64 style paddless. They include firing buttons, which I plan on using as power switch and game reset. 16F675 has a low power sleep mode with 1nA current consumption, so I plan on using that to switch off.

Downloads

---

Project documentation

HEX Program
 PIC12F675 PIN PONG - Link
