Serial Port Professional PIC Programmer

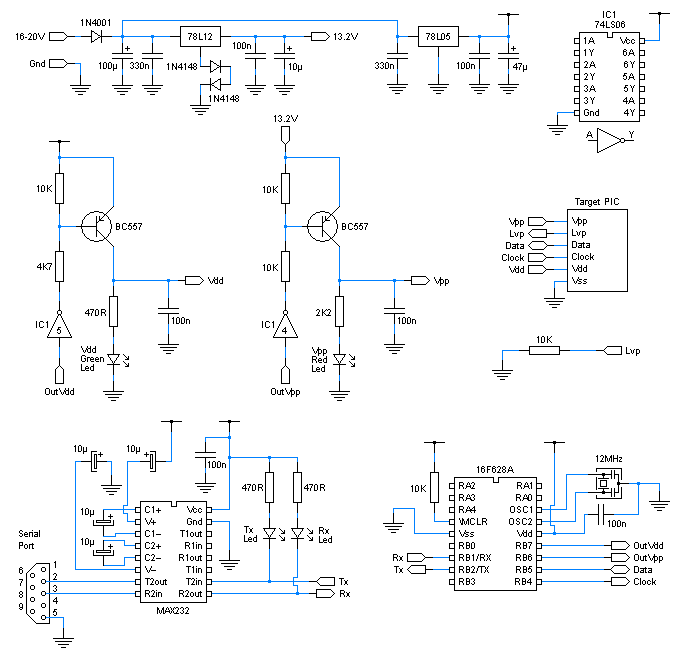

The PIC programmer project presented here is intended to be used by more experienced developers who already have access to a simple PIC programmer, because the programmer hardware is built around one 16F627(A) or 16F628(A) microcontroller that has to be preprogrammed with firmware. The presented solution uses PC's serial port for reliable communication between the programming software and 'intelligent' PIC programmer hardware.
Here is the list of currently supported flash devices from Microchip PICmicro 12F and 16F product lines: 12F629, 12F675, 16F627, 16F627A, 16F628, 16F628A, 16F630, 16F648A, 16F676, 16F72, 16F73, 16F74, 16F76, 16F77, 16F737, 16F747, 16F767, 16F777, 16F83, 16F84, 16F84A, 16F87, 16F88, 16F818, 16F819, 16F870, 16F871, 16F872, 16F873, 16F873A, 16F874, 16F874A, 16F876, 16F876A, 16F877 and 16F877A.
Downloads
Serial Port Professional PIC Programmer - Link
| |
 |
