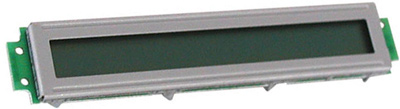

1x24 Character LCD Display
Specifications:
 Characters: 1x 24
Connection: Standard 14 PIN interface
Voltage Supply: 5V
Dimensions: .75" x 4.25" x .25 (2 cm x 10.6 cm x .8 cm) (H x W x D)
Interface Connection:
PIN 1: Vss - GND
PIN 2: VDD - +5V VCC
PIN 3: Vo - Contrast Adjustment
PIN 4: RS - Reset
PIN 5: R/W - Read/Write
PIN 6: E - Enable Signal
PIN 7: DB0 Data 0
PIN 8: DB1 Data 1
PIN 9: DB2 Data 2
PIN 10: DB3 Data 3
PIN 11: DB4 Data 4
PIN 12: DB5 Data 5
PIN 13: DB6 Data 6
PIN 14: DB7 Data 7 |
|
