Veronica 1W FM Transmitter

Veronica 1W FM Transmitter




Veronica 1W FM Transmitter

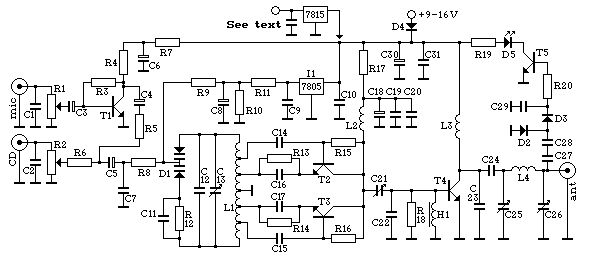

Veronica 1W FM transmitter is an easy to build transmitter. Veronica is also known for frequency stability, clean FM signal and uses no integrated circuit. The Veronica oscillator is actually formed from 2 oscillators which operates somewhere around 50 MHz in anti phase and the 2 signals are combined to form 100MHz FM radio signal. This kind of circuit design is stable and is amplified up to 1W by 2n4427 transistor. Veronica transmitter is equipped with a mini-mixer and so you may forget an external mixer. This consist from T1 transistor which amplifies the microphone signal before it is combined with CD player audio or PC signal. R1 and R2 are potentiometers (variable resistors) used to adjust the audio level. The component between R8 and C21 represents the oscillator which generates radio signal. D1 is a varicap diode (like a variable capacitor or trimmer) controlled by audio signal. C12, C13 and L1 determines the frequency.


Veronica 1W FM Transmitter

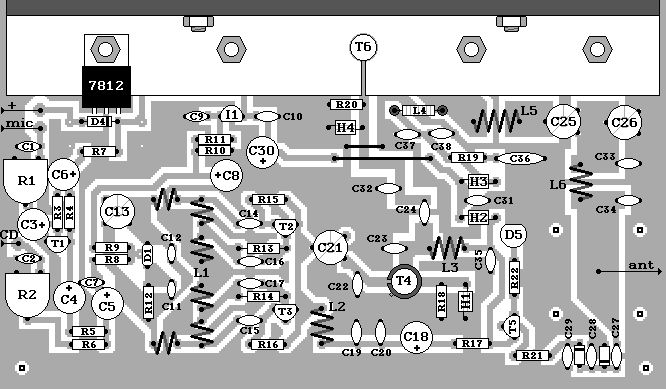

Veronica components list

Resistors:
R1+2 10k pot
R3 820k
R4 4.7k
R5-7+19 220r
R8 1.5k
R9 15k
R10+11 1k
R12 33k
R13+14 56r
R15+16 68k
R17 47r
R18 270r
R20 10k
Capacitors
C1, 2, 7, 16, 17, 19,
24, 29 & 31 1n
C3-5 & 8 10u elect.
C6, 18 & 30 220u elect.
C9, 10 & 20 10n
C11 22p*
C12 47p*
C13 22p trimmer
C14 & 15 15p*
C21, C25 & 26 65p trimmer
C22 100p
C23 5.6p
C27 & 28 1.8p
Coils
L1 – 6 coils / 2 turns, 5mm diam si 5mm length
L2 – 3 turns, 7mm diam si 7mm length
L3 – 4 turns, 5mm diam si 7mm length
L4 – 6 turns, 5mm diam si 10mm length
Diode
D1 KV1310
D2+3 1N4148
D4 Standard LED
D5 1N4001
Transistors
T1+5 BC548
T2+3 BF494
T4 2N4427

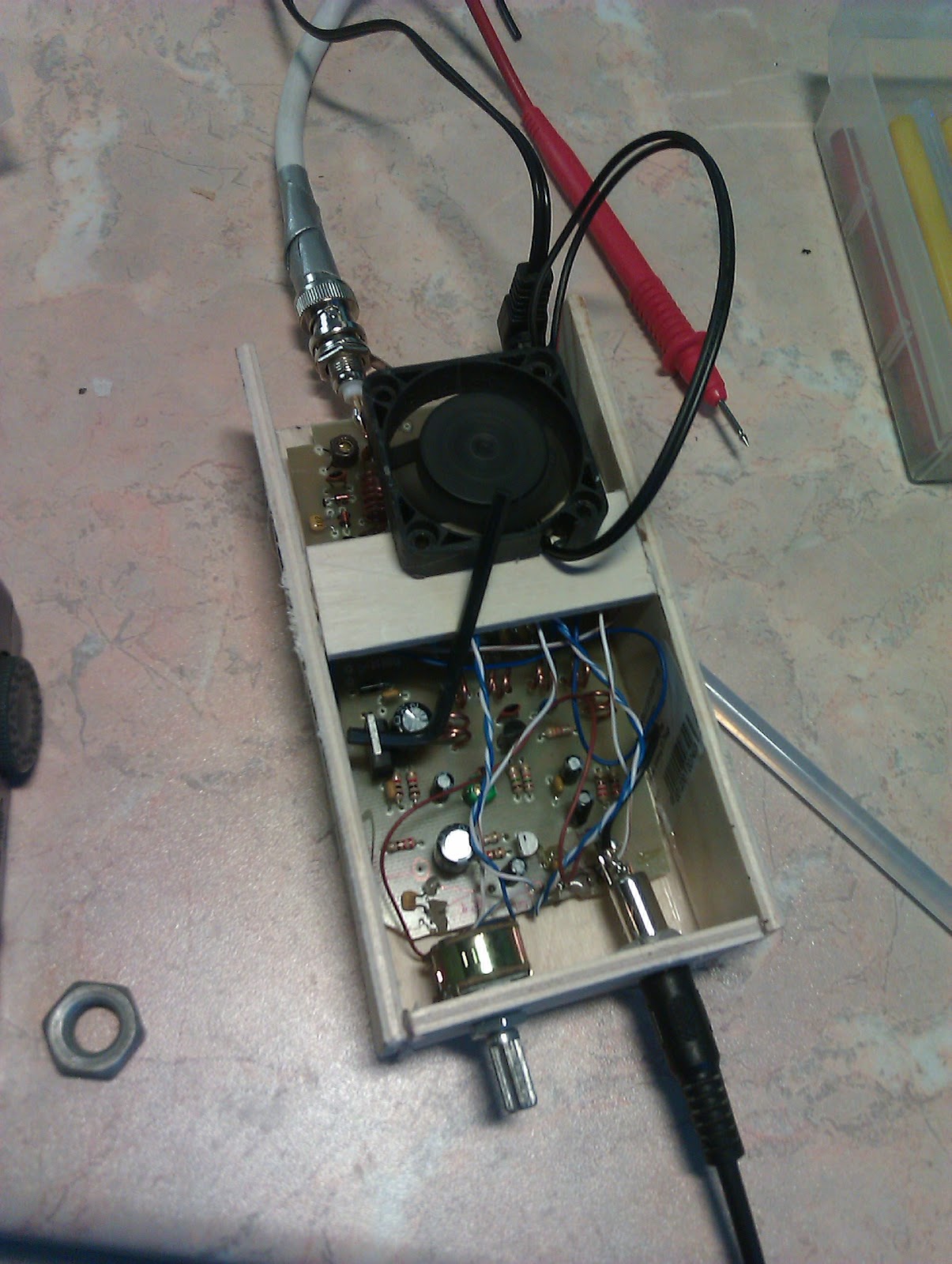

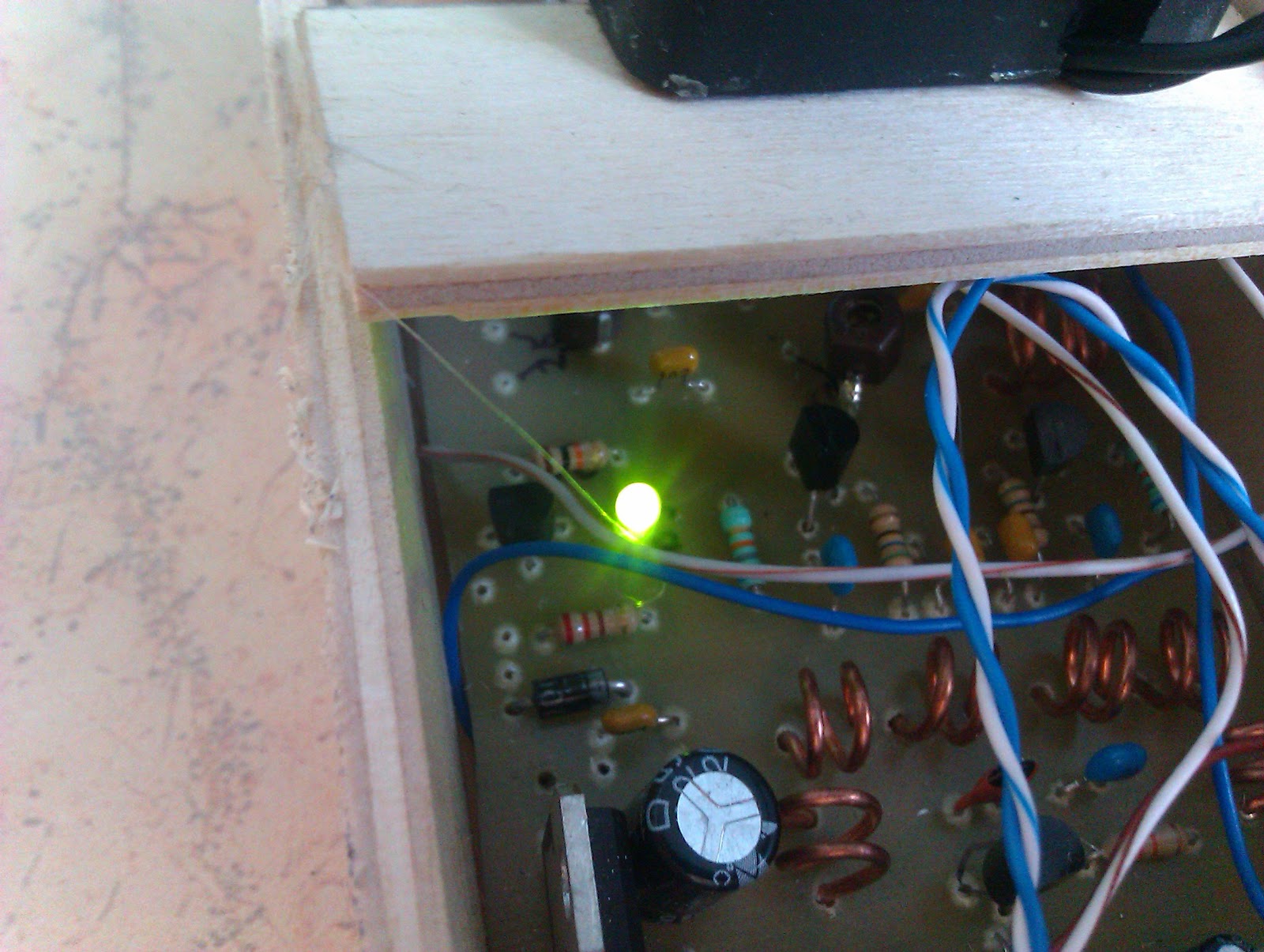

The transmitter must be mounted in an aluminium carcase connected to ground. The power supply voltage is between 9 and 16V, at 16V the rf output power is 1W and at 12V is 600mW and at 9V is 200mW.


Veronica 1W FM Transmitter


Veronica 1W FM Transmitter


Veronica 1W FM Transmitter

Veronica 1W FM Transmitter
