Synthesized HF Receiver

Synthesized HF Receiver




Synthesized HF Receiver

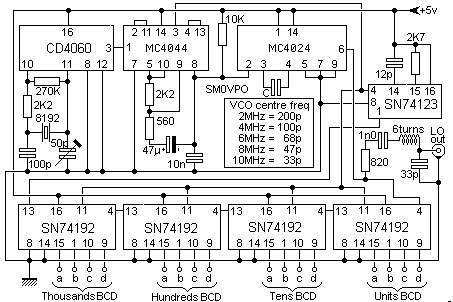

Very simple design and will cover the centre frequency plus or minus 20%. It is completely powered by a single 5 volt supply. A 10nf decoupling capacitor is fitted across every IC in the circuit, but there was not enough space in the circuit to show this. Receive frequency is selected with BCD switches & covers the selected band in 1KHz steps. The variable cap in the reference oscillator is varied to "clarify" the received signal. The synthesizer must be tuned to 500KHz above/below the frequency you want to receive if the receiver board is set to 500KHz.


Synthesized HF Receiver
