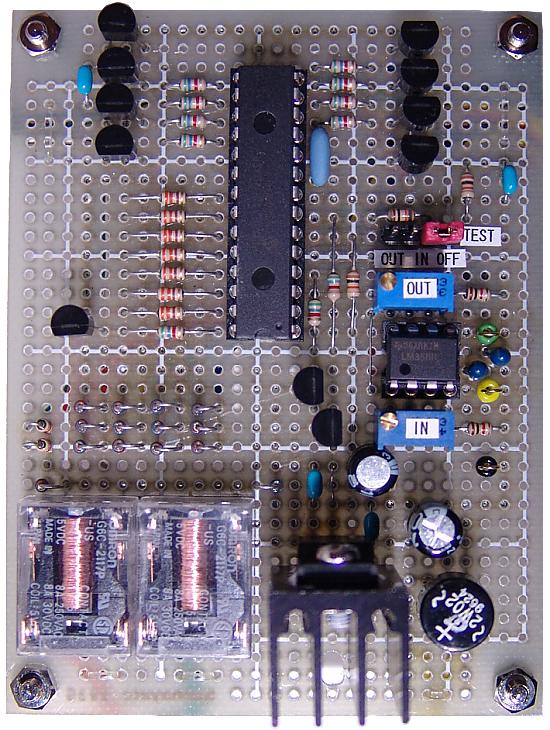

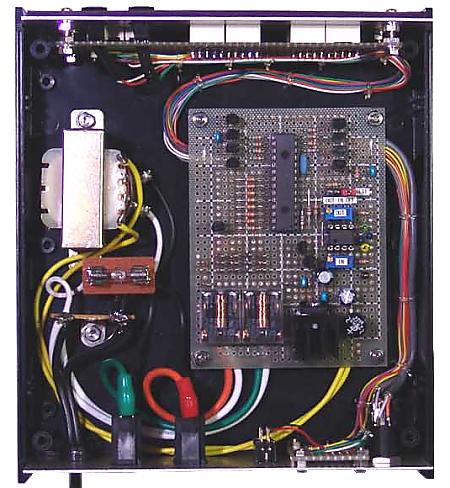

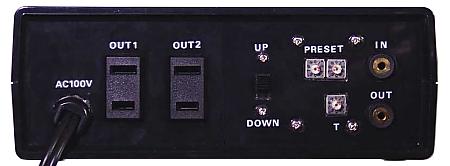

room temperature controller with PIC. This equipment uses two temperature sensors, drives external equipment, and keeps the temperature of the room at preset temperature.
The purpose of this equipment is for preventing room temperature going up with the heat of the computers. Electric cost will become high if an air-conditioner is always operated. Then, I made the equipment which adjusts the temperature of the room automatically using some ventilation fans. The function below preset temperature is a function attached moreover. I think that it can use for temperature control, such as a greenhouse.
