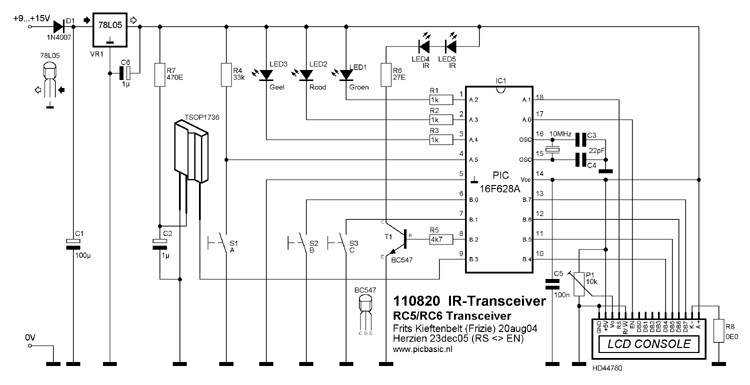

This project is an expansion from another project from this website.
On the one side you can read the RC5, RC5X and RC6 codes from remote controls on a LCD and on the other hand you can send all thinkable RC5, RC5X and RC6 codes to a device.

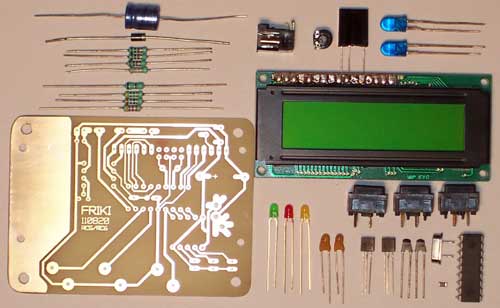

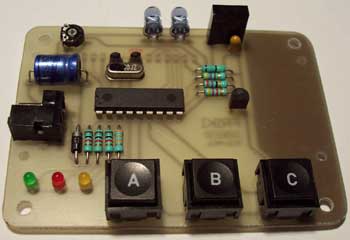

Besides is for this project a PCB layout drew to make it still more easier for you.
