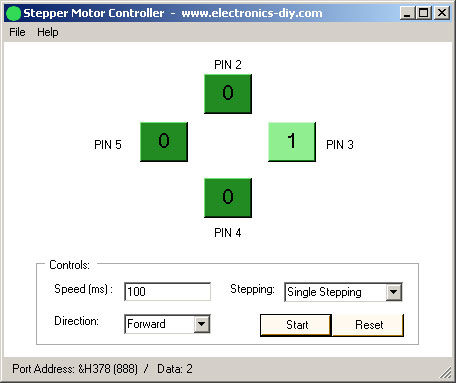

Stepper Motor Controller
Stepper Motor Controller
This is an easy to use software that will allow you to precisely control a unipolar stepper motor through your computer's parallel port. With a stepper motor you can build a lot of interesting gadgets such as robots, elevator, PCB drilling mill, camera panning system, automatic fish feeder, etc.

Once we'll receive your payment you will receive an e-mail with a link to download a full version of Stepper Motor Controller. As an owner of the retail version you are entitled to request an addition of new features, and download the latest versions of the program as they become available.
Larger Quantities?
Get Quote
Price: $5.95
In Stock: YES
Quantity:


Parallel Port Controller
Parallel Port Controller
This is an easy use software that will allow you to control up to eight external devices through your computer's parallel port. You may for instance control different appliances such as lamps, computers, printers, tv sets, radios, music systems, air conditioners, air fans, garden sprinklers and anything else you can think off, all through your computer. In the future versions you will be able to program at what time a particular device should be turned on or off.

Once we'll receive your payment you will receive an e-mail with a link to download a full version of Parallel Port Controller. As an owner of the retail version you are entitled to request an addition of new features, and download the latest versions of the program as they become available.
Larger Quantities?
Get Quote
Price: $5.95
In Stock: YES
Quantity:

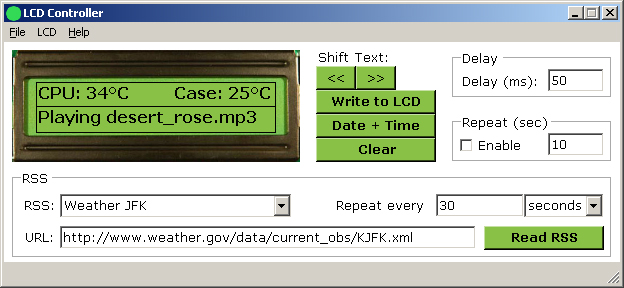

LCD Controller
LCD Controller
LCD Controller allows to send text messages to 16 x 2 LCD through computer's parallel port. One of the new features allows to display information from the internet via RSS feeds. Schematic is shown below and only requires parallel port male connector, wires and any 16 x 2 character LCD display.

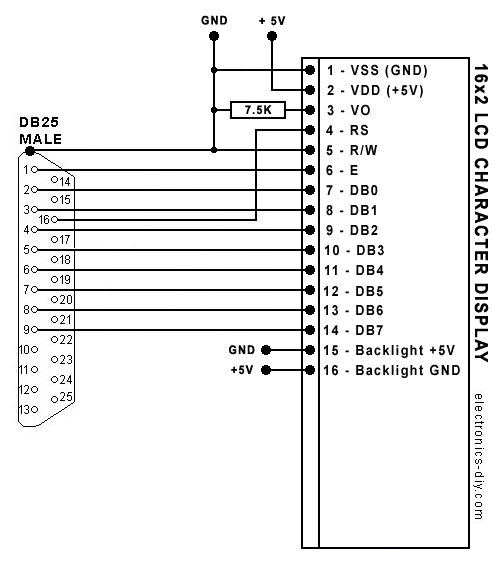

LCD Controller Schematic
Larger Quantities?
Get Quote
Price: $5.95
In Stock: YES
Quantity:


USB Relay Controller
USB Relay Controller
Control up to eight devices with your computer using this USB relay controller board. Comes with Relay Controller software to control your devices from a PC. 12V relays are not included.

Specifications
     Voltage Supply: 12V
     PCB Dimensions: 18mm x 59mm / 0.7' x 2.3'

USB relay controller

Component List
   1x PIC18F2455 / PIC18F2550 Programmed Microcontroller (MCU)
   1x PCB
   1x 28-DIP IC Socket
   1x USB Type B Connector
   1x Gold Plated 12-PIN LCD Male Header
   1x Gold Plated 8-PIN LCD Male Header
   1x 20MHz Crystal Resonator
   8x BC549 Transistor
   8x 1K Resistor
   2x 10K Resistor
   1x 100uF Capacitor
   2x 100nF Ceramic Capacitor
   1x Instructions with Schematic
   1x USB Relay Controller software (Win XP, VISTA, Win 7)

12V Relays are not included.
Larger Quantities?
Get Quote
Price: $39.95
In Stock: YES
Quantity:
